TRUMETER 9100 Multiple Preset Meter and Flow Meter

The 9100 is a multifunctional preset counter and flow meter that allows simultaneous operation in different modes. It has an improved 3-line display, front panel programming and an EEPROM memory. The 9100 performs batch counting, totalising and flow measurement simultaneously. The 3-line Supertwist LCD display is easy to read from any angle and the displayed values, engineering unit selection and 12 characters of user programmable text can be printed directly from the printer port.

• Maintains three of the following values simultaneously: Count preset, count forewarned, stack preset, overspeed, underspeed and shows count status, total value and speed
• Counts in one of seven modes: A-B, A+B, A/B, counting process and direction as well as quadrature x1, x2 and x4
• EEPROM stores programme and data for 40 years without power supply

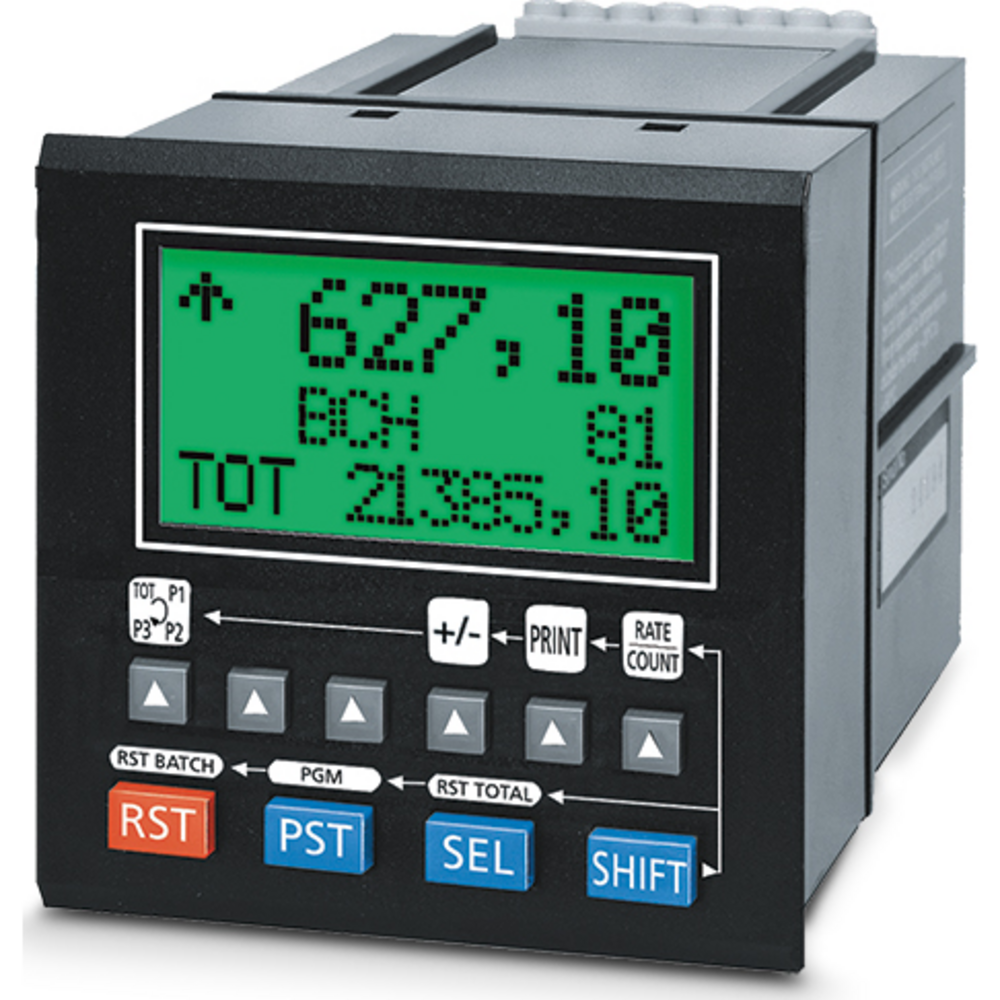

• 3-line Supertwist LCD display, easy to read from any angle
• Easy programming in English, German, French or Spanish via a simple menu structure and a 10-button keypad
• The count continues while the speed measurement is running
• Accurate enough for position detection and robot control
• Can be operated with 85-265 VAC and can therefore be used worldwide
• Multiplication and division prescalers enable direct display in the required (technical) units
• Manual, remote-controlled and automatic resetting possible
• Remote lock and remote keypad deactivation
• Fast electronic or slow contact closure inputs, all with optical insulation. Contact closure inputs are debounced
• Additional 12 VDC 100 mA output to supply the sensor
• Environmental protection according to IP65/NEMA4X
• CE-certified
