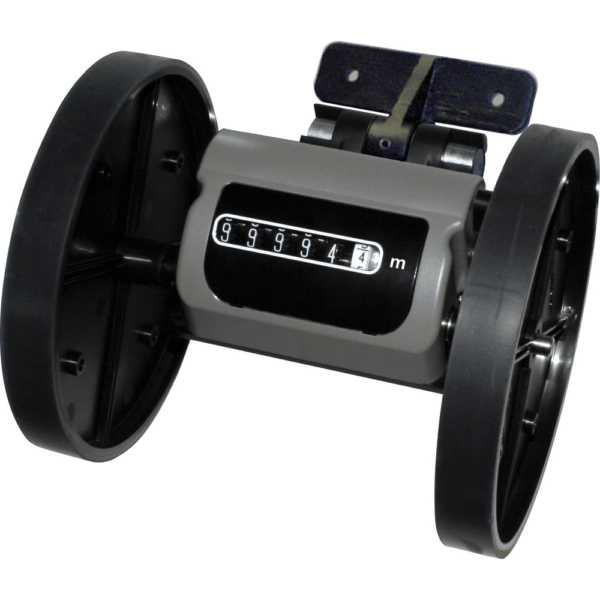

TRUMETER 2300 Length measuring device with mechanical counter, 2 measuring wheels and hinge holder for measuring the length of textiles and foils.
280,29 € plus VAT.
Stock variants
Description
TRUMETER 2300 length measuring device with two measuring wheels and hinged bracket
Length measuring device ideal for measuring the length of textiles, fabrics, foils and many other flat materials. The measuring device for flat material has two measuring wheels for stable support on the material to be measured.
Robust design with mechanical metre counter for use in demanding environments such as calenders, frame machines, rolling machines, strip winding machines and for all other continuous production processes. The 2300 length measuring device is mounted directly above the material to be measured using the hinge supplied.
Features
- Measuring range 99999.9 m
- Robust die-cast construction
- Length measuring device with mechanical totaliser
- Two measuring wheels
- Mounting with hinge
Data sheet
Additional information
| Direction of rotation | Material moves towards operator, material moves away from operator |
|---|
