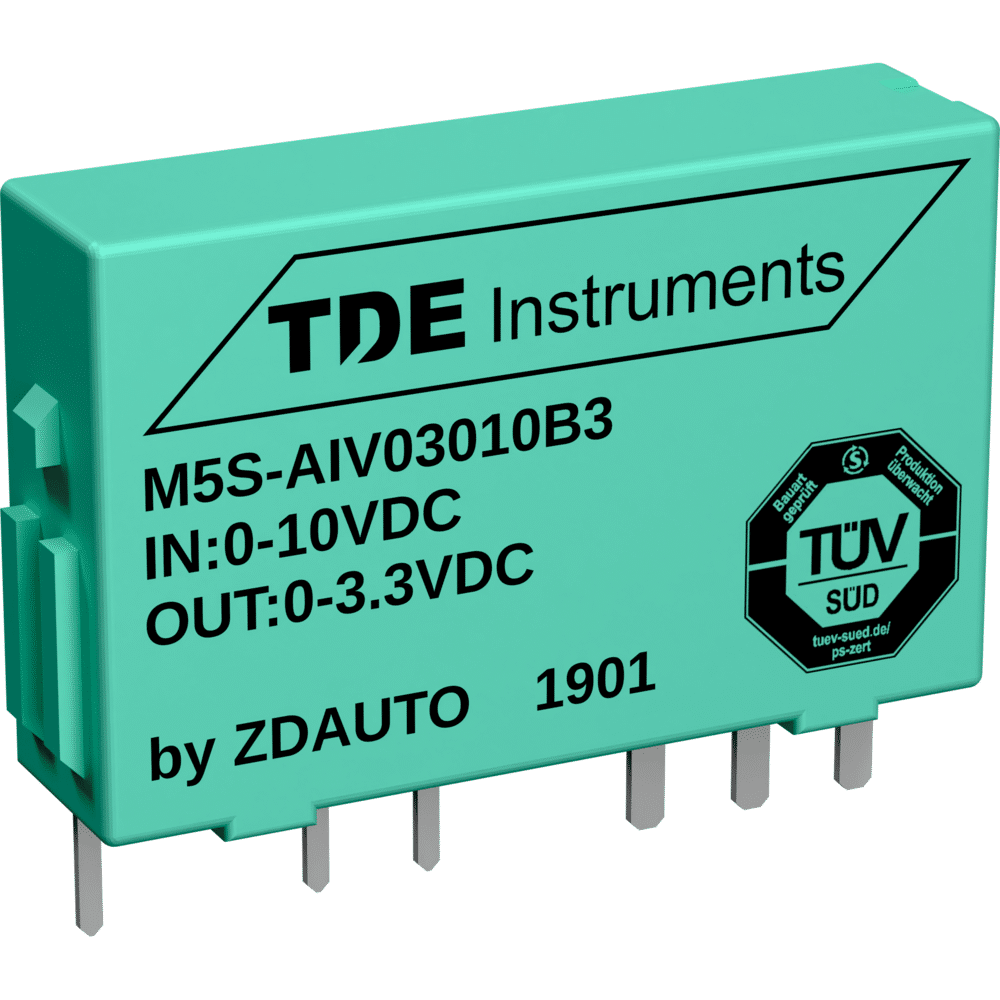

ZDAUTO M5S-AI signal converter ICs Analogue input 10 V and 20 mA or Pt100
from 9,68 € plus VAT.
Stock variants
Pt100 | 5 V: 310 Stück in stock
Pt100 | 3,3 V: 274 Stück in stock
0 bis 10 V DC | 3,3 V: 399 Stück in stock
0 bis 10 V DC | 5 V: 273 Stück in stock
0 bis 20 mA DC | 3,3 V: 294 Stück in stock
0 bis 20 mA DC | 5 V: 98 Stück in stock
Pt100 | 5 V: 310 Stück in stock
Pt100 | 3,3 V: 274 Stück in stock
0 bis 10 V DC | 3,3 V: 399 Stück in stock
0 bis 10 V DC | 5 V: 273 Stück in stock
0 bis 20 mA DC | 3,3 V: 294 Stück in stock
0 bis 20 mA DC | 5 V: 98 Stück in stock
Description
I/O module analogue input for recording analogue signals, potentiometers, temperature sensors and other current and voltage generating devices
The modules are fully sealed, waterproof, fireproof and dustproof. Thanks to the universal connection diagram, all M5S modules are interchangeable without having to change the internal or external wiring. This means that all possible applications can be covered with a universal circuit, customer-specific input and output configurations can be realised by plugging in the corresponding modules and even devices already installed in the field can be expanded with additional functions.
Features
- Universal input module
- Optional: isolated or non-isolated signal
- Multifunctional: DC voltage/current and various types of temperature sensors
- 5 mm SIP housing
- Dimensions 5 mm × 12.7 mm × 20 mm
Additional information
| Signal external | 0 to 10 V DC, 0 to 20 mA DC, Pt100 |
|---|---|
| Signal internal | 3.3 V, 5 V |
| M5S type | Analogue input |
