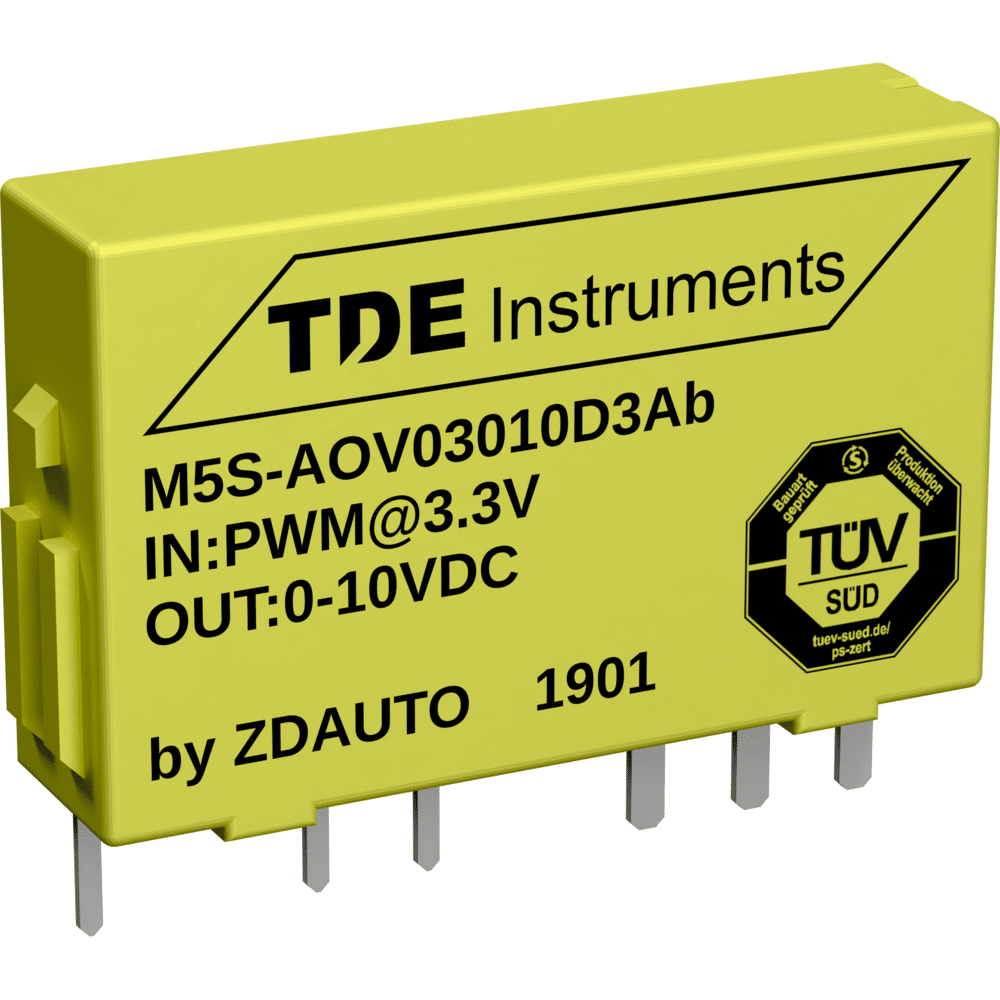

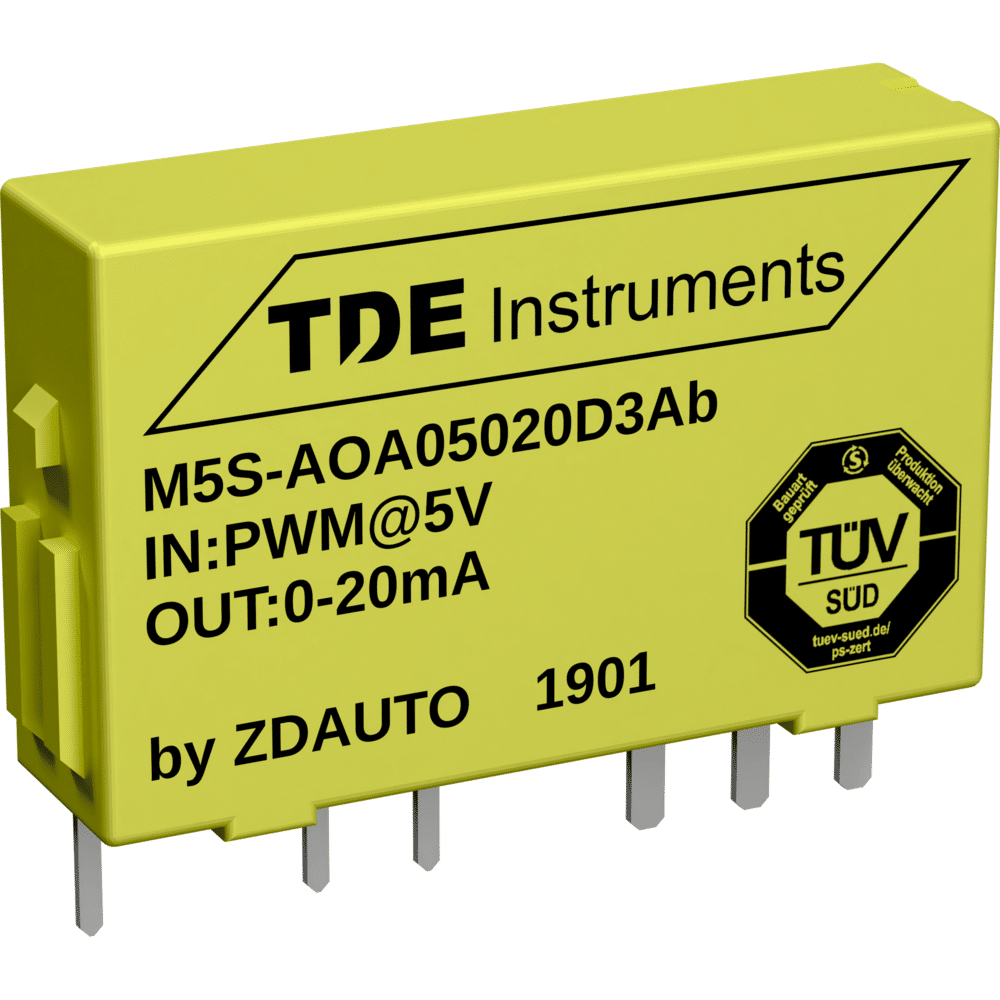

ZDAUTO M5S-AO Signal converter IC analogue output 10 V or 20 mA
from 10,73 € plus VAT.
Stock variants
0 to 10 V DC | 3.3 V: 270 pieces in stock
0 to 10 V DC | 5 V: 1048 pieces in stock
0 to 20 mA DC | 3.3 V: 70 pieces in stock
0 to 20 mA DC | 5 V: 523 pieces in stock
0 to 10 V DC | 3.3 V: 270 pieces in stock
0 to 10 V DC | 5 V: 1048 pieces in stock
0 to 20 mA DC | 3.3 V: 70 pieces in stock
0 to 20 mA DC | 5 V: 523 pieces in stock
Description
I/O module analogue output for controlling speed regulators, heating controllers and other devices that are controlled via a 10 V or 20 mA analogue signal
The modules are fully sealed, waterproof, fireproof and dustproof. Thanks to the universal connection diagram, all M5S modules are interchangeable without having to change the internal or external wiring. This means that all possible applications can be covered with a universal circuit, customer-specific input and output configurations can be realised by plugging in the corresponding modules and even devices already installed in the field can be expanded with additional functions.
Features
- Universal output module
- Optional: isolated or non-isolated signal
- Standard signal 10 V or 20 mA
- 5 mm SIP housing
- Dimensions 5 mm × 12.7 mm × 20 mm
Additional information
| Signal external | 0 to 10 V DC, 0 to 20 mA DC |
|---|---|
| Signal internal | 3.3 V, 5 V |
| M5S type | Analogue output |
