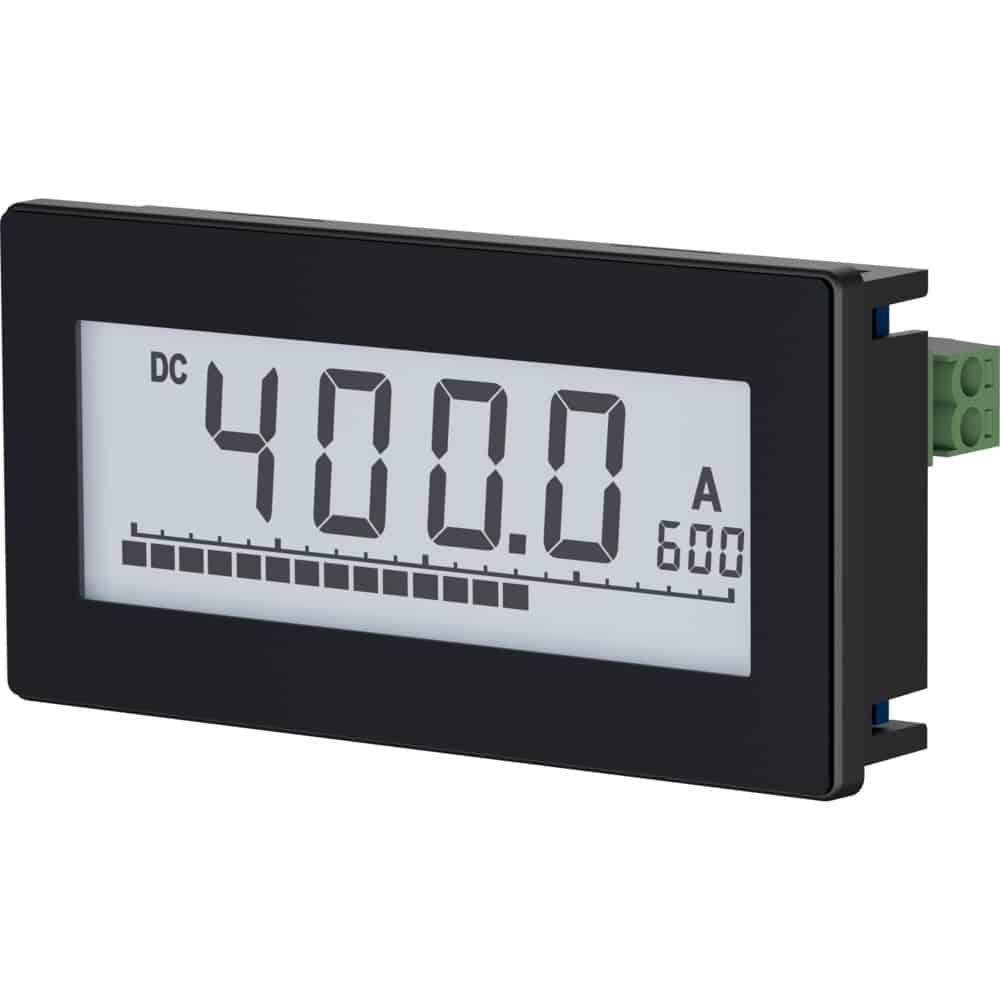

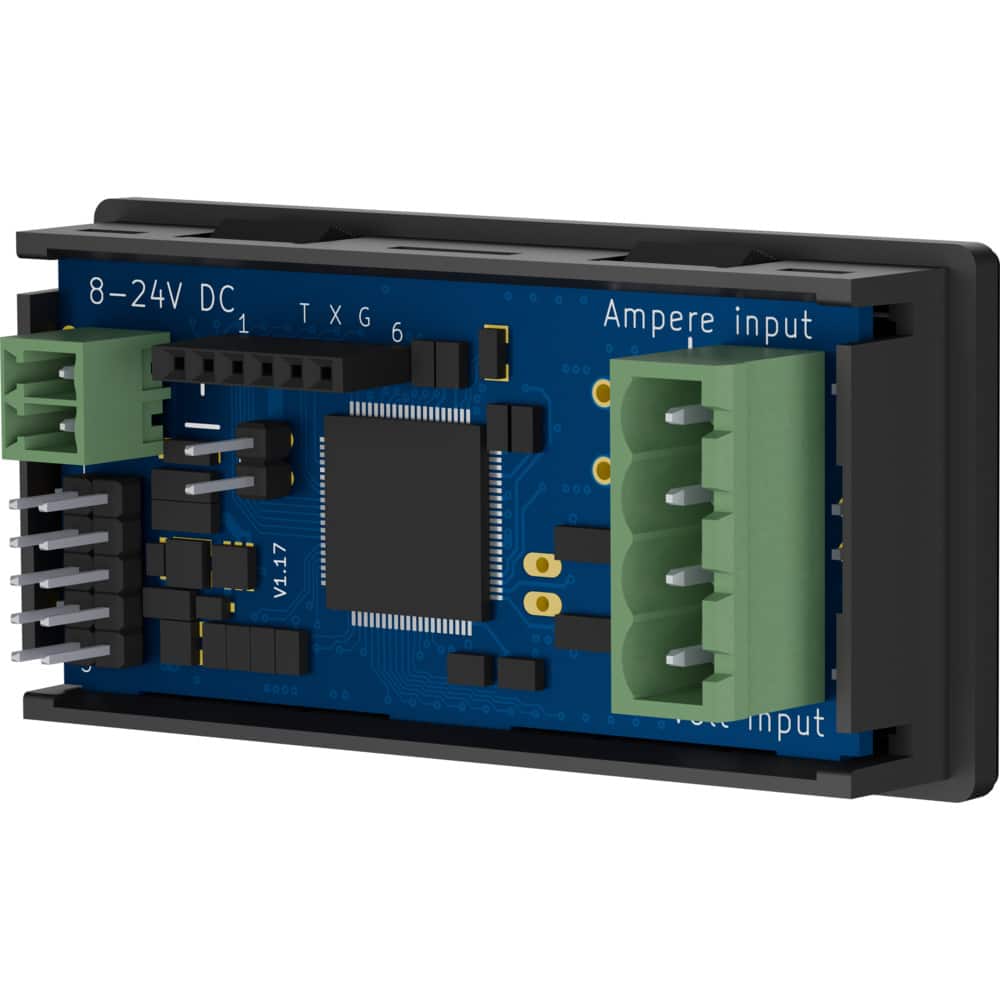

TDE Instruments DPM36-AVN digital multimeter panel-mounted instrument for AC/DC voltage, 10 A AC/DC current, shunt resistance and frequency measurement

TDE Instruments DPM36-AVN digital multimeter panel-mounted instrument for measuring voltage, shunt resistance and frequency

The following measurement types are supported: AC/DC voltage, AC/DC current and frequency. It
During operation, it is possible to switch between four measurement modes using a switch contact. Via
The current reading can be frozen using the switch contact (hold function). It
Minimum and maximum values are recorded. They can be displayed via a switch contact
and can be reset by changing the measurement mode or restarting the device. The
The backlight can be switched on or off using a switch contact.

A programming menu, accessible via a jumper, allows further settings to be configured. The full scale range of the bar graph can be programmed for each measurement mode. The measurement type can be changed for each measurement mode. Furthermore, for each
A scaling factor can be selected in measurement mode. For battery operation, there is a
Monitoring of the supply voltage; if the voltage falls below a settable
trigger a warning message on the display when the threshold value is reached. The device can be set to
The factory settings can be reset.

The measured values, together with the minimum and maximum values, can be read via the UART-
Transmit continuously via the interface or via the optionally available USB card
. Furthermore, additional programming can be carried out via an interface command
carry out, e.g. selecting the symbols to be displayed.
